<%NUMBERING1%>.<%NUMBERING2%>.<%NUMBERING3%> PRTG Manual: SSH Disk Free Sensor

The SSH Disk Free sensor monitors the free space on disks of a Linux/Unix system using Secure Shell (SSH).

i_round_blueThe free space that this sensor returns shows the available disk space of the volume, minus a reserve defined for this volume (for example, for redundancy purposes). So, this sensor shows the disk space that is actually available for use. The size of the reserved disk space can be defined with tune2fs. For more information, see the Knowledge Base: Why do SSH Disk Free and SNMP Linux Disk Free show different values for my target Linux system?

SSH Disk Free Sensor

SSH Disk Free Sensor

i_square_cyanFor a detailed list and descriptions of the channels that this sensor can show, see section Channel List.

Sensor in Other Languages

  • Dutch: SSH Disk vrij
  • French: Espace disque disponible (SSH)
  • German: SSH Laufwerkskapazität
  • Japanese: SSH ディスク空き容量
  • Portuguese: Disco livre (SSH)
  • Russian: Свободное пространство диска по SSH
  • Simplified Chinese: SSH 磁盘可用空间
  • Spanish: Espacio libre en disco (SSH)

Remarks

  • This sensor requires credentials for Linux/Solaris/macOS (SSH/WBEM) systems in the settings of the parent device.
  • This sensor does not support all Linux/Unix and macOS distributions.
  • This sensor has a medium performance impact.
  • This sensor only supports IPv4.
  • You can select up to 100 disks in the Add Sensor dialog. If you select more disks, you cannot create the sensor. Add the sensor multiple times to monitor more than 100 disks with several sensors.

Basic Sensor Settings

Basic Sensor Settings

Basic Sensor Settings

Setting

Description

Sensor Name

Enter a name to identify the sensor. By default, PRTG shows this name in the device tree, as well as in alarms, logs, notifications, reports, maps, libraries, and tickets.

i_round_blueIf the name contains angle brackets (<>), PRTG replaces them with braces ({}) for security reasons. For more information, see the Knowledge Base: What security features does PRTG include?

Parent Tags

The tags that the sensor inherits from its parent device, parent group, and parent probe.

i_round_blueThis setting is for your information only. You cannot change it.

Tags

Enter one or more tags. Confirm each tag with the Spacebar key, a comma, or the Enter key. You can use tags to group objects and use tag-filtered views later on. Tags are not case-sensitive. Tags are automatically inherited.

i_round_blueIt is not possible to enter tags with a leading plus (+) or minus (-) sign, nor tags with parentheses (()) or angle brackets (<>).

i_round_blueFor performance reasons, it can take some minutes until you can filter for new tags that you added.

The sensor has the following default tags that are automatically predefined in the sensor's settings when you add the sensor:

  • diskfreesensor
  • sshdiskfreesensor

Priority

Select a priority for the sensor. This setting determines the position of the sensor in lists. The highest priority is at the top of a list. Choose from the lowest priority (i_priority_1) to the highest priority (i_priority_5).

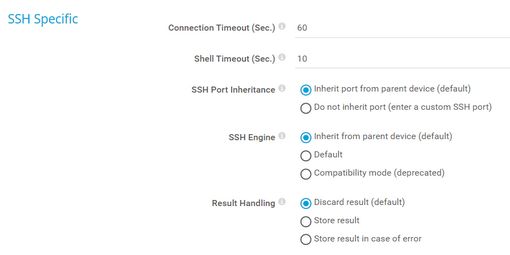

SSH Specific

SSH Specific

SSH Specific

Setting

Description

Connection Timeout (Sec.)

Define a timeout in seconds for the connection. This is the time that the sensor waits to establish a connection to the host. Keep this value as low as possible. Enter an integer. The maximum timeout value is 900 seconds (15 minutes).

i_round_blueMake sure that the connection timeout is a value that is higher than the shell timeout to avoid potential errors.

Shell Timeout (Sec.)

Define a timeout in seconds for the shell response. This is the time in seconds the sensor waits for the shell to return a response after it has sent its specific command (for example, cat /proc/loadavg). The maximum value is 300 seconds (5 minutes). Enter an integer.

i_round_blueMake sure that the shell timeout is a value that is lower than the connection timeout to avoid potential errors.

SSH Port

Define which port this sensor uses for the SSH connection:

  • Inherit port number from parent device (default): Use the port number as defined in the Credentials for Linux/Solaris/macOS (SSH/WBEM) Systems section of the parent device settings.
  • Enter custom port number: Define a custom port number below and do not use the port number from the parent device settings.

Use Port Number

This setting is only visible if you select Enter custom port number above.

Enter the port number (between 1 and 65535) that this sensor uses for the SSH connection. Enter an integer.

SSH Engine

Select the SSH engine that you want to use to access data with this SSH sensor:

  • Inherit from parent device (default): Use the SSH engine that you defined in the parent device settings or higher up in the object hierarchy. If you have not changed the SSH engine, this is the recommended option.
  • Default: This is the default SSH engine. It provides the best performance and security. It is set by default in objects that are higher up in the hierarchy, so usually you can keep the Inherit from parent device (default) option.
  • Compatibility mode (deprecated): Use this only if the default SSH engine does not work on a target device. The compatibility mode is the SSH engine that PRTG used in previous versions. It is deprecated. We will remove this legacy mode soon, so try to get your SSH sensors to run with the default SSH engine.

i_round_redWe strongly recommend that you use the default SSH engine.

i_round_redThe option you select here overrides the selection of the SSH engine in a higher object: a parent device, group, probe, or root.

Result Handling

Define what PRTG does with the sensor result:

  • Discard result (default): Do not store the sensor result.
  • Store result: Store the last sensor result in the \Logs\sensors subfolder of the PRTG data directory on the probe system. The file names are Result of Sensor [ID].txt, Result of Sensor [ID].Data.txt, and Result of Sensor [ID] (SSHv2).txt. This setting is for debugging purposes. PRTG overwrites these files with each scanning interval.
  • Store result in case of error: Store the last sensor result only if the sensor shows the Down status.

i_podThis option is not available when the sensor runs on the hosted probe of a PRTG Hosted Monitor instance.

i_round_blueIn a cluster, PRTG stores the result in the PRTG data directory of the master node.

Set Limits Checked for ALL Disks

In this section, you can set limits that are valid for all channels and all drives. By entering limits, you can define when the sensor shows the Warning or the Down status, depending on the data provided by all drives that this sensor monitors. If you want to individually define limits for separate channels, use the limit settings in the channel settings.

i_round_redAll limits that you define here are valid in addition to the limits defined in the particular Channel settings. The limits are valid simultaneously, so the first limit that is breached applies.

Set Limits Checked for ALL Disks

Set Limits Checked for ALL Disks

Setting

Description

Percentage Limit Check

Enable or disable a limit check for the free space in percentage channels of all drives. By default, the sensor enables percentage limits with a lower warning limit and a lower error limit.

  • Only use the limits in the settings of the percentage channels: Do not define sensor limits that are valid for all percentage channels. The sensor only uses the limits that you define in the settings of the particular "free space in percent" channels to determine the state.
  • Use the limits of both the sensor and the channel settings: Define sensor limits that are valid for all percentage channels. Additional fields appear below. The sensor shows the Warning or the Down status when free space limits are above or below the limits.

Upper Error Limit

This setting is only visible if you select Use the limits of both the sensor and the channel settings above.

Specify an upper limit in percent for the Down status. If the free disk space of one of your drives exceeds this value, the sensor changes to the Down status. Enter an integer or leave the field empty.

i_round_redThe limits that you set here are valid for all channels of this sensor. You can additionally set individual limits for each channel in the channel settings. Both the limits that you set here and in the channel settings are valid simultaneously.

Upper Warning Limit

This setting is only visible if you select Use the limits of both the sensor and the channel settings above.

Specify an upper limit in percent for the Warning status. If the free disk space of one of your drives exceeds this value, the sensor changes to the Warning status. Enter an integer or leave the field empty.

i_round_redThe limits that you set here are valid for all channels of this sensor. You can additionally set individual limits for each channel in the channel settings. Both the limits that you set here and in the channel settings are valid simultaneously.

Lower Warning Limit

This setting is only visible if you select Use the limits of both the sensor and the channel settings above.

Specify a lower limit in percent for the Warning status. If the free disk space of one of your drives falls below this value, the sensor changes to the Warning status. Enter an integer or leave the field empty.

i_round_redThe limits that you set here are valid for all channels of this sensor. You can additionally set individual limits for each channel in the channel settings. Both the limits that you set here and in the channel settings are valid simultaneously.

Lower Error Limit

This setting is only visible if you select Use the limits of both the sensor and the channel settings above.

Specify a lower limit in percent for the Down status. If the free disk space of one of your drives falls below this value, the sensor changes to the Down status. Enter an integer or leave the field empty.

i_round_redThe limits that you set here are valid for all channels of this sensor. You can additionally set individual limits for each channel in the channel settings. Both the limits that you set here and in the channel settings are valid simultaneously.

Size Limit Check

Enable or disable a limit check for the free bytes channels of all drives:

  • Only use the limits in the settings of the byte size channels: Do not define sensor limits that are valid for all byte size channels. The sensor only uses limits that you define in the settings of the particular free space in bytes channels to determine the state.
  • Use the limits of both the sensor and the channel settings: Define limits for the sensor that are valid for all byte size channels. Additional fields appear below. The sensor shows the Warning or Down status when free space limits are above or below the value.

i_round_blueBy default, byte size limits are not enabled for drives.

Upper Error Limit

This setting is only visible if you select Use the limits of both the sensor and the channel settings above.

Specify an upper limit. Use the same unit as shown by the free bytes channels of this sensor (the default unit is MB). If the free disk space of one of your drives exceeds this value, the sensor changes to the Down status. Enter an integer or leave the field empty.

i_round_redThe limits that you set here are valid for all channels of this sensor. You can additionally set individual limits for each channel in the channel settings. Both the limits that you set here and in the channel settings are valid simultaneously.

Upper Warning Limit

This setting is only visible if you select Use the limits of both the sensor and the channel settings above.

Specify an upper limit. Use the same unit as shown by the free bytes channels of this sensor (the default unit is MB). If the free disk space of one of your drives exceeds this value, the sensor changes to the Warning status. Enter an integer or leave the field empty.

i_round_redThe limits that you set here are valid for all channels of this sensor. You can additionally set individual limits for each channel in the channel settings. Both the limits that you set here and in the channel settings are valid simultaneously.

Lower Warning Limit

This setting is only visible if you select Use the limits of both the sensor and the channel settings above.

Specify a lower limit. Use the same unit as shown by the free bytes channels of this sensor (the default unit is MB). If the free disk space of one of your drives falls below this value, the sensor changes to the Warning status. Enter an integer or leave the field empty.

i_round_redThe limits that you set here are valid for all channels of this sensor. You can additionally set individual limits for each channel in the channel settings. Both the limits that you set here and in the channel settings are valid simultaneously.

Lower Error Limit

This setting is only visible if you select Use the limits of both the sensor and the channel settings above.

Specify a lower limit. Use the same unit as shown by the free bytes channels of this sensor (the default unit is MB). If the free disk space of one of your drives falls below this value, the sensor changes to the Down status. Enter an integer or leave the field empty.

i_round_redThe limits that you set here are valid for all channels of this sensor. You can additionally set individual limits for each channel in the channel settings. Both the limits that you set here and in the channel settings are valid simultaneously.

Alarm on Missing/Removed Disk

If a monitored disk is removed or not found, the sensor sets the values to zero. Select the alarm approach in this case:

  • Deactivate alarm (default): Do not send an alert for a removed disk.
  • Activate alarm: Send an alert if a monitored disk is removed or not found.

Sensor Display

Sensor Display

Sensor Display

Setting

Description

Primary Channel

Select a channel from the list to define it as the primary channel. In the device tree, the last value of the primary channel is always displayed below the sensor's name. The available options depend on what channels are available for this sensor.

i_round_blueYou can set a different primary channel later by clicking b_channel_primary below a channel gauge on the sensor's Overview tab.

Graph Type

Define how different channels are shown for this sensor:

  • Show channels independently (default): Show a graph for each channel.
  • Stack channels on top of each other: Stack channels on top of each other to create a multi-channel graph. This generates a graph that visualizes the different components of your total traffic.
    i_round_redYou cannot use this option in combination with manual Vertical Axis Scaling (available in the channel settings).

Stack Unit

This setting is only visible if you select Stack channels on top of each other above.

Select a unit from the list. All channels with this unit are stacked on top of each other. By default, you cannot exclude single channels from stacking if they use the selected unit. However, there is an advanced procedure to do so.

Inherited Settings

By default, all of these settings are inherited from objects that are higher in the hierarchy. We recommend that you change them centrally in the root group settings if necessary. To change a setting for this object only, click b_inherited_enabled under the corresponding setting name to disable the inheritance and to display its options.

i_square_cyanFor more information, see section Inheritance of Settings.

Scanning Interval

Scanning Interval

Scanning Interval

i_square_cyanFor more information, see section Root Group Settings, section Scanning Interval.

Schedules, Dependencies, and Maintenance Window

i_round_blueYou cannot interrupt the inheritance for schedules, dependencies, and maintenance windows. The corresponding settings from the parent objects are always active. However, you can define additional schedules, dependencies, and maintenance windows. They are active at the same time as the parent objects' settings.

Schedules, Dependencies, and Maintenance Window

Schedules, Dependencies, and Maintenance Window

i_square_cyanFor more information, see section Root Group Settings, section Schedules, Dependencies, and Maintenance Window (default).

Access Rights

Access Rights

Access Rights

i_square_cyanFor more information, see section Root Group Settings, section Access Rights.

Channel Unit Configuration

i_round_blueWhich channel units are available depends on the sensor type and the available parameters. If no configurable channels are available, this field shows No configurable channels.

Channel Unit Configuration

Channel Unit Configuration

i_square_cyanFor more information, see section Root Group Settings, section Channel Unit Configuration.

Channel List

i_round_blueWhich channels the sensor actually shows might depend on the target device, the available components, and the sensor setup.

Channel

Description

Downtime

In the channel table on the Overview tab, this channel never shows any values. PRTG uses this channel in graphs and reports to show the amount of time in which the sensor was in the Down state

Free Bytes [Mounted Partition]

The free space

Free Space [Mounted Partition]

The free space (%)

Total

The total space

More
